Description

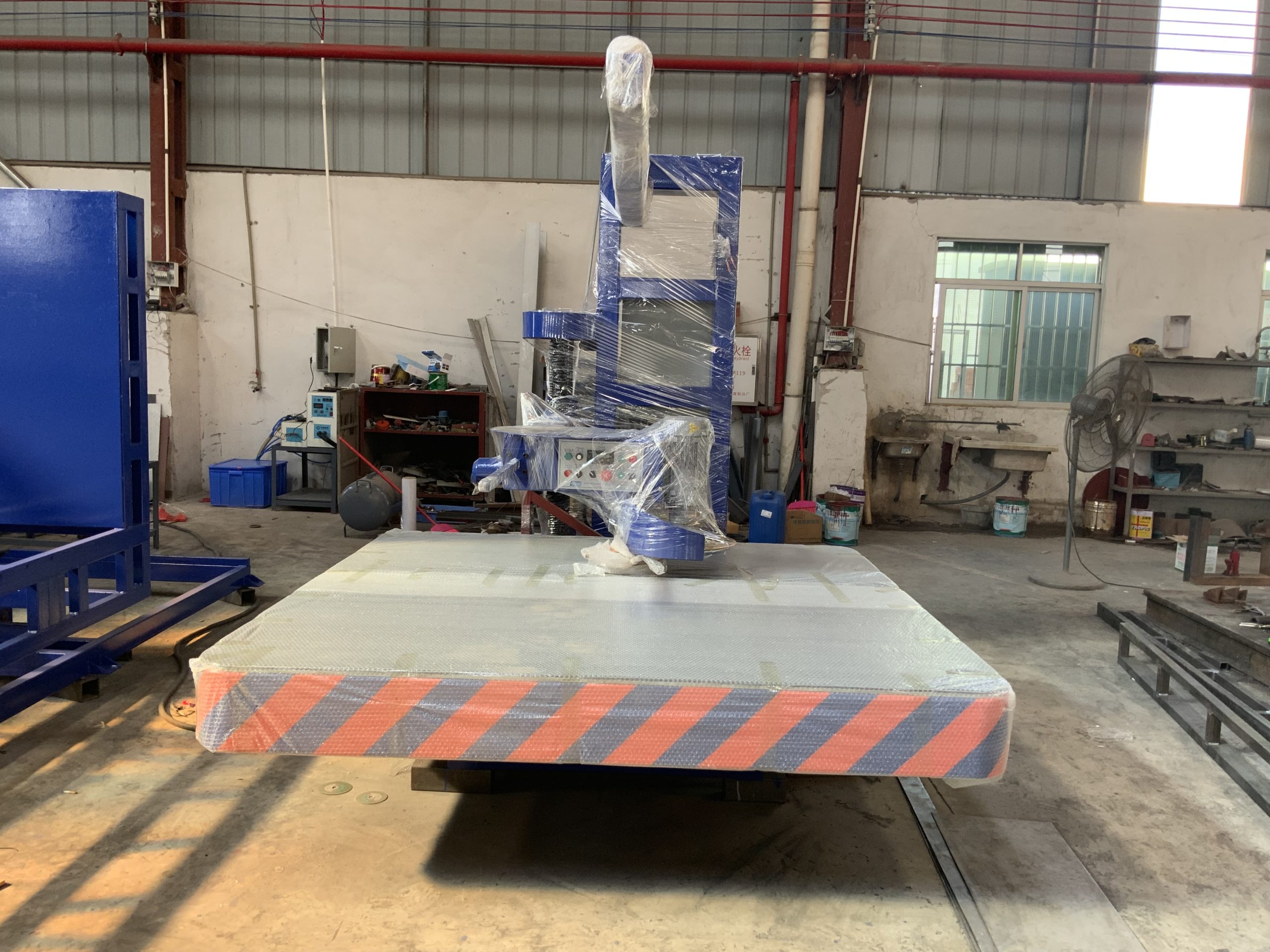

Single / Double-arm sawing machine description :
Range of application
Widely used in bathtub edge, artificial stone edge, etc
Equipment function
It is used to cut the rough edges of the products, and the incisions are flat and the horizontal lines are consistent
Sawing production
Operated by 1 person, about 40pcs produced in 8 hours
Technical parameters
| Rotating worktable Size of equipment: | 1500mm*1000mm / 2000mm*1500mm / 2440mm*2440mm / 3000mm*3500mm /
(Or customized according to the maximum product size) |
| Cutting power of grinding head motor: | About 3KW three-phase four wire / voltage 380V |
| Equipment weight: | about 1 ton |
| Frequency converter: | control stepless speed regulation |
| Electric cutting: | special movable protective shield |
| Electric control height: | adjust the height up and down |
| Cutting height of rocker arm: | about 680mm from the turntable surface |
| Clamping height: | About 1000mm |
| Workpiece assembly: | pneumatic compression |
| System: | Electric control system 1 SETS |
| Rotation speed: | 0.3-2 cycles/min, adjustable. |
| Electronic control component: | Frequency converter is “Taida” from Taiwan |
| Pneumatic component: | SNS |
